Human eyes safety testing machine
Equipment use
This equipment performs
Safety inspection of 3D scanning module (TOF) to the human eyes, by measuring the output ratings from the device; i.e. optical power ratings, wavelength.
Purge or sort defective parts.
Configuration
UPH：350
Dual testing stations
Intelligent features
Flexible Input device requirement; as they will be orientated to the required position with machine vision system.
Machine architecture
The equipment is designed for both standalone and scalable in-line production operations.
It is clean-room class 100 or ISO 5 ready.

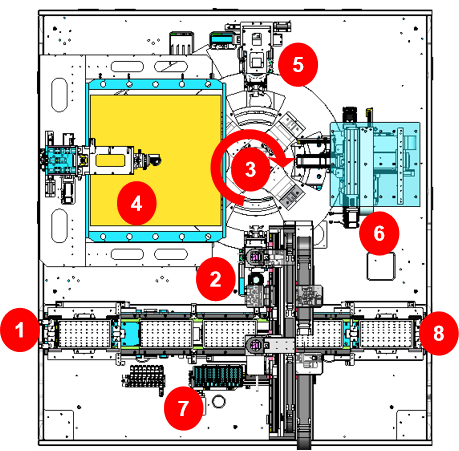

Device input feeder.
Pick & Place Loader with machine vision for device orientation.
4 stations Turn-table.
Image function testing station.
Optical power ratings testing station (Integrating Sphere).
Brightness safety testing station.
Reject Bin
Device output stacker.
