This equipment performs the bonding process in various stages of the camera module assembly.

• Lens holder onto the filter

• Filter onto filter holder

• Lens VCM module onto PCB

UPH : 2000

Single or multiple point marking for same or different defined action/s on the same product.

Capable of dot and line dispensing.

Programmable dispensing parameters; such as feed rate, stop time, thickness control (z-axis); for all type of adhesive shape requirement.

Automatic placement positioning compensation via machine vision systems.

The equipment is designed for both standalone and scalable in-line production operations.

It is clean-room class 100 or ISO 5 ready.

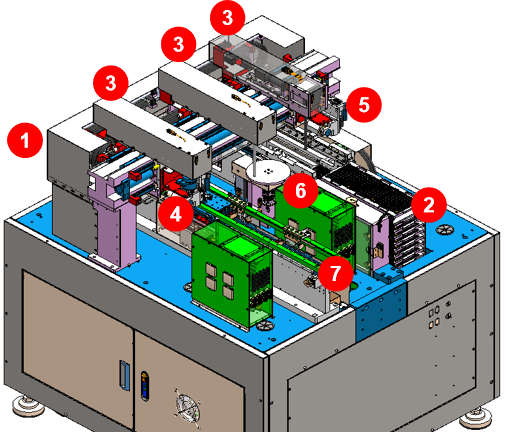

1. Input A magazine feeder.

2. Input B tray feeder.

3. CCD Vision systems.

4. Pick & Place for A.

5. Pick & Place for B.

6. Placement turn-table.

7. Output track to magazine.
