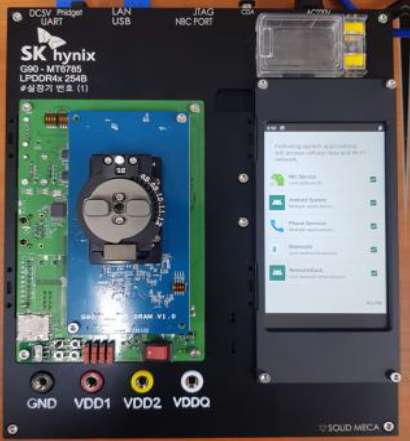

G90 MT6785 Tester:
•uMCPMemory Test
•Variable Voltage
-VCC / VCCQ2 / VCCQ
-VDD2 / VDDQ
•Variable Frequency
-MAX 4266 Mbps
•UART Console
•BGA : 254B
| Item | Description | Remark |
| Product Name | G90 MT6785 실장기 | |
| Application Processor | MT6785 | MediaTek Co. |
| DRAM Freq | Max 4266 Mbps | |
| Package Type | 254 FBGA | MCP |
| STORAGE | UFS2.1 / Gear3 / | 64 /128 / 256 / 512GB |
| DRAM Type | LPDDR4x | MAX 12GB |
| Voltage | VCC / VCCQ / VCCQ2 | (UFS 2.x) 3.0 / x / 1.86 V |
| VDD1 / VDD2 / VDDQ | 1.8 / 1.1 / 0.6 V | |
| Variable Voltage | VCC : 2.5/2.8/2.9/3.0/3.1/3.3V | VCC : 2.5/2.8/2.9/3.0/3.1/3.3V |
| VCCQ2 : 1.86V | VCCQ2 : x | |
| VDD1 : 1.8V | VDD1 : x | |
| VDD2 : 0.3V ~ 1.3V | VDD2 : 5mV / step | |
| VDDQ : 0.5 ~ 0.65V | VDDQ : 10mV / step | |

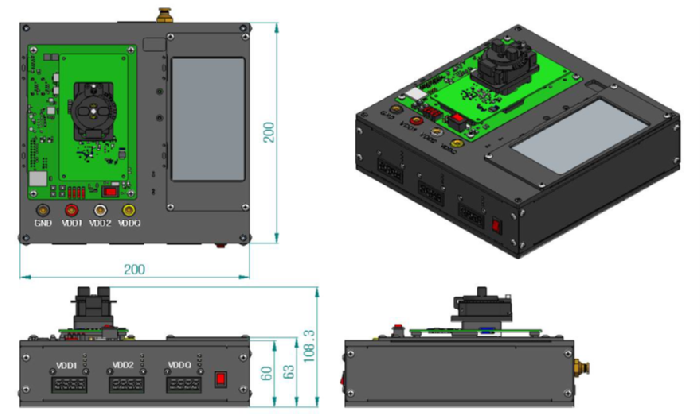

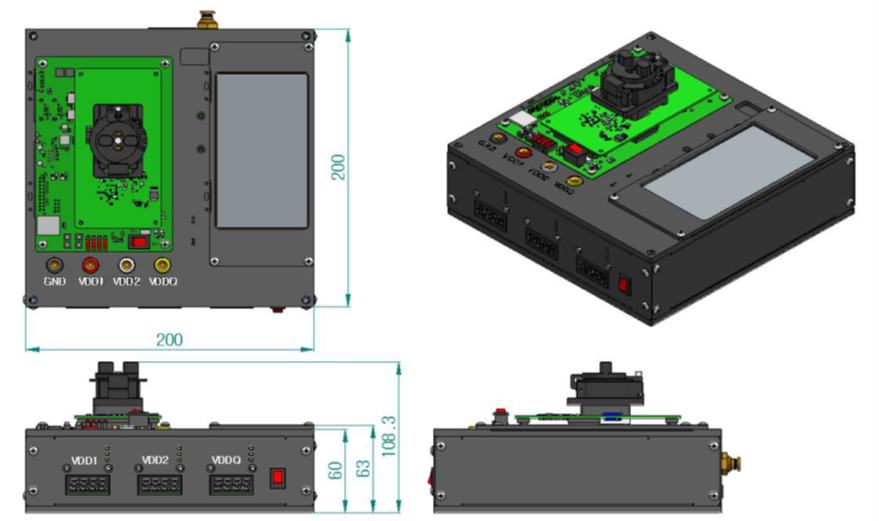

| Package Dimension | Socket Guide option | |
| Socket | PCR type test socket | |
| OS | Android Q(10) | |
| fastboot | fastboot Support | |
| Debug | UART / USB ADB | |
| Support Tools | Single, Multi Downloader / ETT | MediaTek Support PGM |
| S/W | Source & Compile Tool 제공 | |
| Warranty | 1year |
QualifiedVendorsList
uMCP(UFS + DRAM)
Samsung
•KM8V7001JA_B813
Hynix
•H9HP16AECMMDAR
